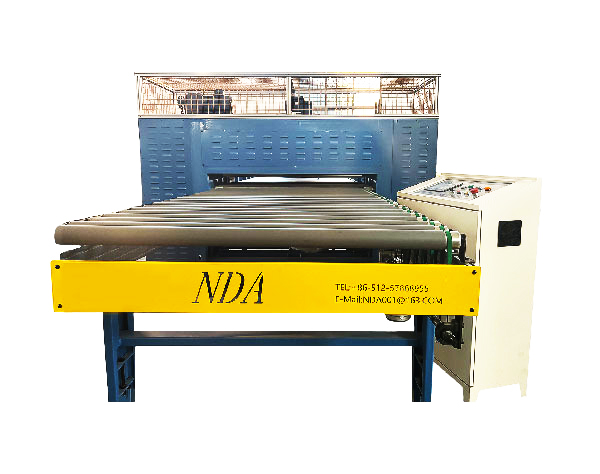

1.Main parameters：

1.1. Power Input: 380V 63KW.

1.2. 0-12M/min.

1.3.  Air Input: 0.4-0.7 MPa.

1.4.  External Dimensions LxWxH:6900mm x 2350mm x 2100mm.

1.5.  Max. Sheet loaded WxH：1350mm x 100mm.

1.6. Servo motor controls material thickness and sealing pressure.

1.7. Parameters/functions adjustable via touch screen.

1.8. The characteristic hot oil roll uses the metal space material coating, the temperature resistance can be up to 400 degrees, has avoided the Teflon coating temperature resistance easy to take off, the shortcoming.

1.9. Applicable to PET double-side sealing hole processing.

2. Equipment Configuration:

2.1. Spindle Gear Motor: Taiwan Shengbang 2HP * 2 sets;

2.2. Low-voltage electrical appliances: Schneider * 1 set;

2.3. Servo motor full digital control dimensional accuracy;

2.4. Screw Slide: 3 sets of Taiwan Silver;

2.5. Pneumatic control system: 1 set for Jade, Taiwan;

2.6. Metallic space material coated hot oil rolls * 4;

2.7. Operation Control System: Mitsubishi * 1 set;

3. Recommended Cable: 3 * 30 + 1

4. Dust Collector: None.

5. Lead Time: 60 Working days.
