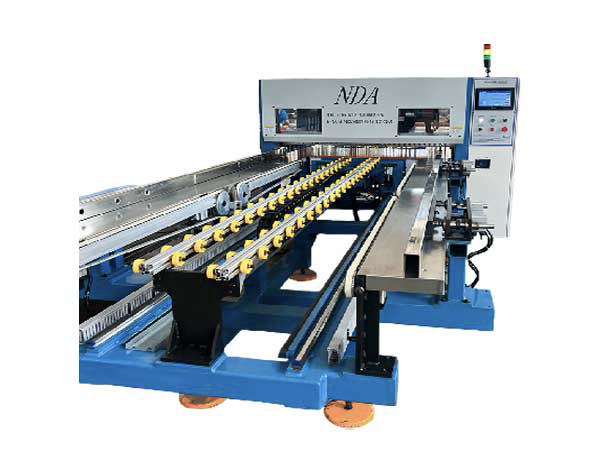

1. Main parameters：

1.1.Power Input: 380V 32KW.

1.2.Speed of machine shaft: 3000RPM *16 motors.

1.3.Air Input: 0.4-0.7 MPa.

1.4.External Dimensions LxWxH: 7500mm x 2150mm x 1900mm.

1.5.Max. Sheet loaded LxWxH：2700mm x 1350mm x 80mm.

1.6.Hole-Hole Spacing Options: 20*20/40*40/20*40, 孔径 Ø1-4mm.

1.7.Feeding length & perforation depth adjustable thrum servo.

1.8.Parameters/functions adjustable via touch screen.

1.9.Speed:1.5-2Min/Pcs

1.10.Purpose：Foam & Balsa perforation for Infusion.

2. Product specification:

2.1. Machined sheet size 2700 * 1350mm, thickness 5-80mm feed port allowed maximum feed size 80mm,

2.2. The maximum drilling depth is 80 mm, the bottom is less than 2 mm, (the material density range is 60-300 kg/m ~ 3, the hole diameter is 2.0 ± 0.5 mm) ,

2.3. The intelligent man-machine dialogue device is easy to operate, and the damaged drill needle is easy to change quickly and efficiently.

3. Equipment Configuration:

3.1. Variable frequency speed drill motor: 2 HP, 16 sets;

3.2. Low-voltage electrical appliances: Schneider * 1 set;

3.3. All-digital control of drilling displacement: 2 sets of Japanese Yaskawa servo;

3.4. Screw Slide: 3 sets of Taiwan Silver;

3.5. Pneumatic control system: 1 set for Jade, Taiwan

3.6. Drilling Group: Taiwan brand custom * Group 4;

3.7. Operation Control System: Xinjie * 1 set; NDA core added. Four.

Recommended use of cable: 3 * 10 + 1,

5, dust collection port: No.

6. Lead Time: 60 Working days.
